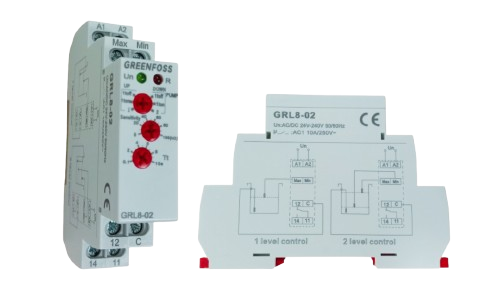

Level Control Relay

Product #GRL8-02
Categories:
Relays, Timers, Protection

Description

Designed for monitoring level in wellss, basins, reservoirs, tanks.....
Request Quote

Specifications

  • In one device you can choose the following configurations:
  • 2 level control mode
  • 1 level control mode
  • Choice of function PUMP UP, PUMP DOWN.
  • Adjustable time delay on the output (0.1 - 10s).
  • Sensitivity adjustable by a potentiometer (5-100kΩ).
  • Galvanically separated supply voltage AC/DC 24-240V.
  • Relay status is indicated by LED.
  • 1-MODULE,DIN rail mounting.
