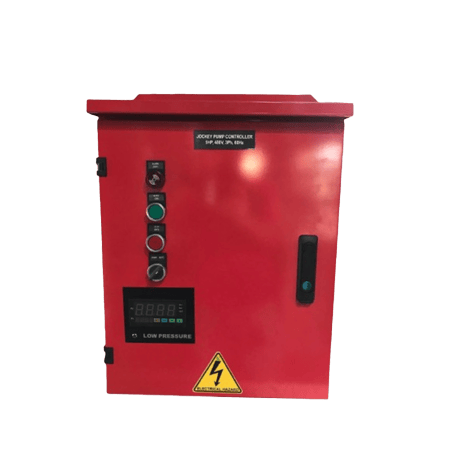

Jockey Pump Controller

Categories:
Motor Controls

Description

A Jockey Pump Controller is a precision control panel designed to automatically start and stop a jockey pump in a fire protection system. It maintains constant pressure in the system by responding to minor pressure drops, preventing unnecessary operation of the main fire pump. The controller typically uses a pressure switch or sensor input to operate the pump and includes built-in safety, status, and manual override features.

It is a critical component in NFPA-compliant fire systems and helps prolong the lifespan of main fire pumps by minimizing start-stop cycles.

Request Quote

Specifications

  • Control Type: Automatic, pressure-based control

  • Applicable Standard: NFPA 20 compliant (if required for fire protection)

  • Power Supply:

    • 230V / 1Ø / 60Hz (for small systems)

    • 400V / 3Ø / 60Hz (for commercial/industrial systems)

  • Motor Rating: 0.75 HP to 3 HP

  • Panel Components:

    • Magnetic Contactor

    • Adjustable Thermal Overload Relay

    • Pressure Switch or Pressure Transducer (0–10V / 4–20 mA)

    • Auto/Manual Selector Switch

    • Start/Stop Push Buttons

    • Indicator Lights:

      • Power ON

      • Pump Running

      • Low Pressure / Fault

    • Circuit Breaker / MCCB with protection

  • Alarm & Safety Features:

    • High/Low Pressure Alarm (Visual and Audible, optional)

    • Dry-run Protection (optional)

    • Fault Reset Button

  • Enclosure:

    • NEMA 3R, NEMA 4, or IP55

    • Wall-mount or floor-standing

    • Powder-coated or stainless steel (for outdoor use)

  • Communication (optional):

    • BMS/SCADA compatible (via dry contacts or Modbus)

  • Application:

    • Fire sprinkler systems

    • Hydrant and hose reel systems

    • Fire pump test loops

    • Pressure maintenance for large building systems
