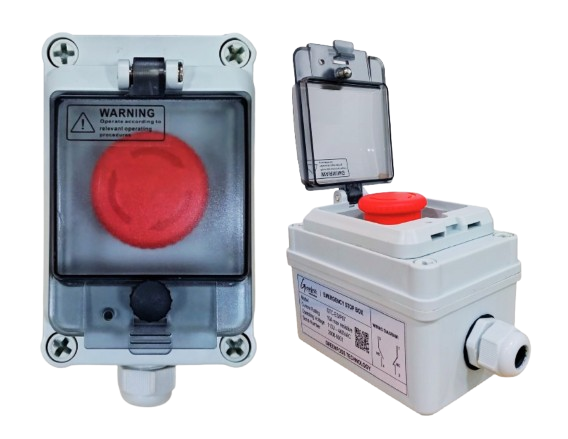

Emergency Stop Box
Product #GTC-ESIP67
Categories:
AccessoriesDescription
An IP67 emergency stop box is a waterproof and dustproof safety switch designed for reliable machinery shutdown in harsh environments.
Specifications
|
Operation Mode
|
ON-OFF
|
|
|
Current rating
|
10A
|
|
|
Operating Voltage
|
660 volts
|
|
|
Contact Type
|
Normally Closed
|
|
|
Connector Type
|
Screw
|
|
|
Switch Type
|
Push Button
|
|
|
Terminal
|
Screw
|
|
|
Circuit Type
|
2-way
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Actuator Type
|
Push Button
|
|
|
Number of Positions
|
1
|
|
|
Control Type
|
On-Off
|
|
|
Compatible Devices
|
Any device requiring an emergency stop
button switch with 660V AC and 10A
rating
|
|
|
Item Dimensions
|
5.7 x 3.3 x 4.1 inches
(14.5 x 8.4 x 10.4cm)
|
|
|
Unit Count
|
1 Count
|
|
|
Number of Items
|
1
|
|
|
Material Type
|
Plastic, Silver
|
|
|
Contact Material
|
Silver
|
|
|
International Protection
Rating
|
IP67
|
|
|
Specification Met
|
CE
|
|
